The Broadwater FB7/10 fall breaker designed for box filling to ensure a gentle and low drop of crop

The FB7/10 fall breaker is made in 3 different sizes

LRG MODEL (for fitting to standard width of elevator . Grimme 1700, Reekie Clean flow, Kverneland, Standen  etc)
1140 X 645

GTZ MODEL ( for fitting to Grimme GZ & GT size elevators and other manufacturers with similar width elevator)
1250 X 745

GTV MODEL (for fitting to Grimme Varitron self propelled type harvesters)
1340 X 745

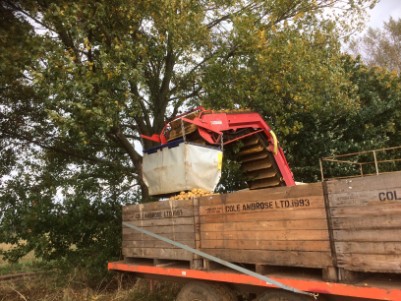

Starting the box fill by lowering the fall breaker to nearly the top of the box
The sock is made to give the operator an indication of the drop height distance

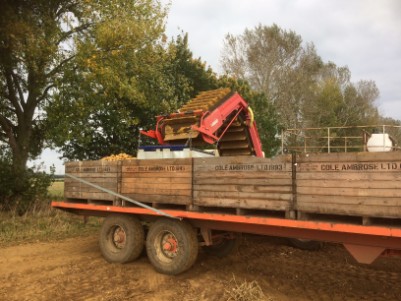

Final filling of a box. The 3rd finger panel is shorter to deliver the crop central to the fall breaker

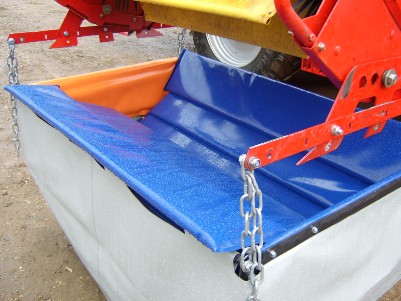

Note that all fall breakers are mounted on chains to allow the flexing of the unit if collision with the boxes happens

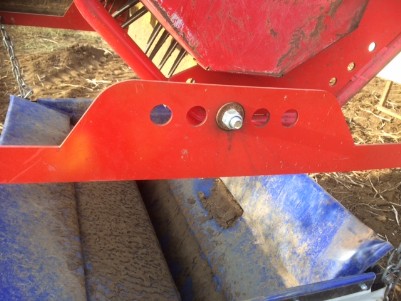

Mounting brackets can be supplied for high capacity harvesters like a Grimme GT, which also are able to be fitted to other makes.
Alternatively on standard cart elevators the chains on each side can be arranged in a triangled format and mounted inline with the elevators end shaft for ideal positioning
